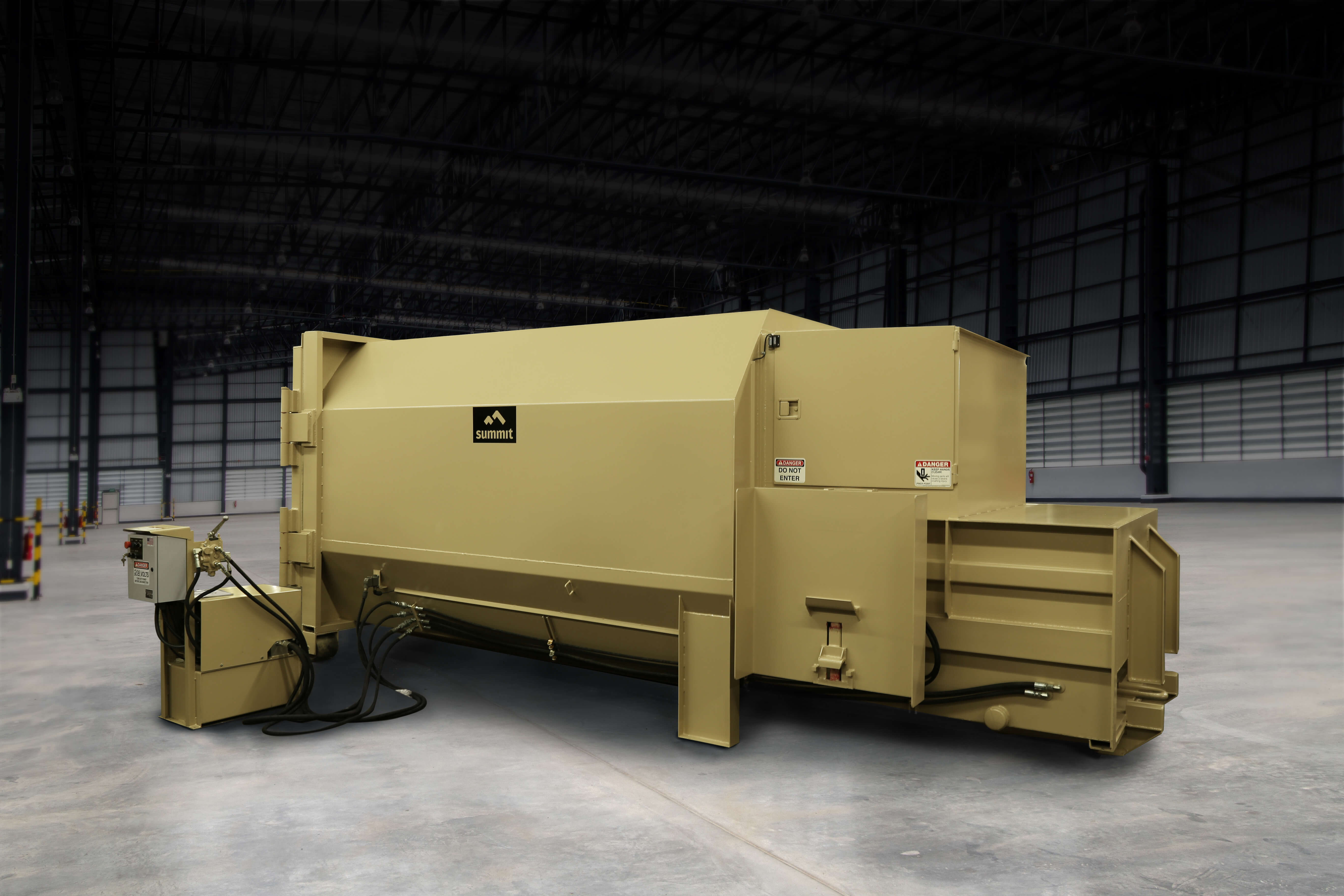

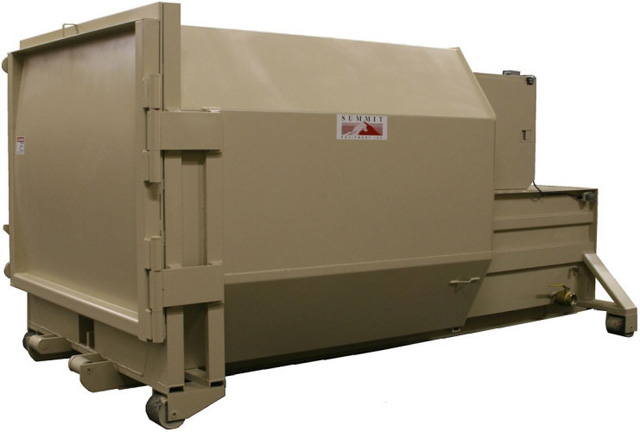

Self-contained Compactors

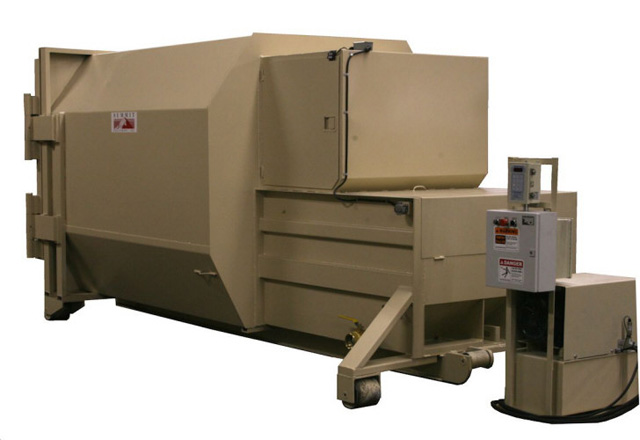

All Summit stationary compactors include standard remote power unit with 6' connections and with lockable controls (START button, "emergency ram control," emergency STOP button, and container packing progress indicator)
| SC-2244 | including: remote power unit w/6' connections; 22"L x 44"W top feed opening;(2) 3" cylinders; 2hp 3Ø motor; retainer teeth; controls on power unit including E-STOP, emergency ram control (manual fwd/rev), START, keylocked ON/OFF |
|---|---|
| SC-2244/3FL | above on 3 c.y. front-load container |
| SC-2244/4FL | above on 4 c.y. front-load container |
| SC-2244/1077 | above on 10 c.y. octagonal roll-off container |
| SC-2244/1277 | above on 12 c.y. octagonal roll-off container |
| SC-2244/1577 or /1588 | above on 15 c.y. oct roll-off |
| SC-3248 | including: platen supported on replaceable guide shoes; drain sump; retainer teeth; remote power unit w/6' connections; 32"L × 48"W top feed opening; (2) 4" cylinders; 10hp 3Ø motor; controls on power unit including E-STOP, emergency ram control (manual fwd/rev), START, keylocked ON/OFF |
| SC-3248/1077 | above on 10 c.y. octagonal roll-off container |
| SC-3248/1577 or /1588 | above on 15 c.y. octagonal roll-off container |
| SC-3248/2088 or /2098 | above on 20 c.y. octagonal roll-off container |
| SC-3248/2588 or /2598 | above on 25 c.y. octagonal roll-off container |
| SC-3248/3088 or /3098 | above on 30 c.y. octagonal roll-off container |
| SC-4060 | including: platen supported on replaceable guide shoes; drain sump; retainer teeth remote power unit w/6' connections; 40"L × 60"W top feed opening; (2) 4" cylinders; 10hp 3Ø motor; controls on power unit including E-STOP, emergency ram control (manual fwd/rev), START, keylocked ON/OFF |
| SC-4060/1577 or /1588 | octagonal roll-off container |
| SC-4060/2088 or /2098 | above on 20 c.y. octagonal roll-off container |
| SC-4060/2588 or /2598 | above on 25 c.y. octagonal roll-off container |
| SC-4060/3088 or /3098 | above on 30 c.y. octagonal roll-off container |
alternate voltage
packing progress indicator light and/or gauge
code-required keypad access
feed hopper to suit site and material
door-close auto-start
custom container configuration
container wheel guides and stops (angle or junior channel)
nose-rollers
double-end pick-up
top-hinged hydraulic tailgate
shed plate
alternate power unit and control layout
3" sump drain valve

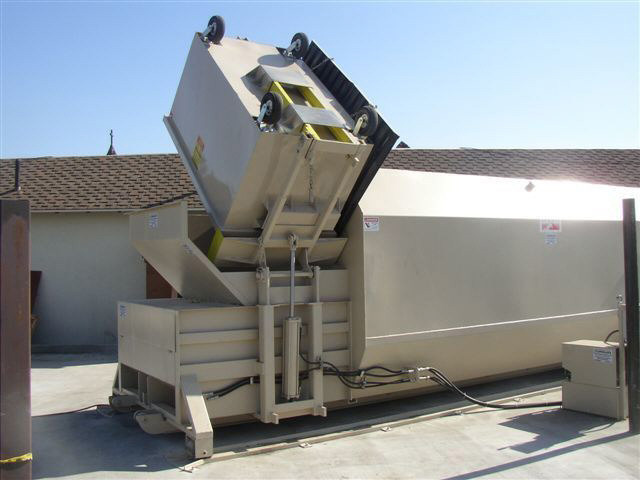

cart dumper, tipper
custom paint color
